Products

Hydra-Booster Clamping System: Integrated hydraulic booster system generates up to 4500 kg of maximum clamping pressure with minimal manual operating force.
Deflection-Resistant Ductile Cast Body: Constructed from high-quality ductile cast iron to resist bending, twisting, and deflection under heavy cutting loads.
Hardened & Ground Slideways: Precision ground, hardened guide ways ensure long-lasting durability, smooth jaw travel, and alignment repeatability.
Concealed Spindle Design: Fully enclosed spindle mechanism protects internal threads from chips, grinding dust, and coolant contamination.
High Precision Tolerances: Guarantees strict squareness accuracy within 0.02 / 100 mm for demanding machine shop tasks.
Swivel Base & Warranty Protection: Available with an optional 360° graduated swivel base; the hydra-booster mechanism is backed by a limited 1-year warranty.
Quick & Secure Locking: Engineered for rapid workpiece clamping, reliable locking, and easy manual operation.

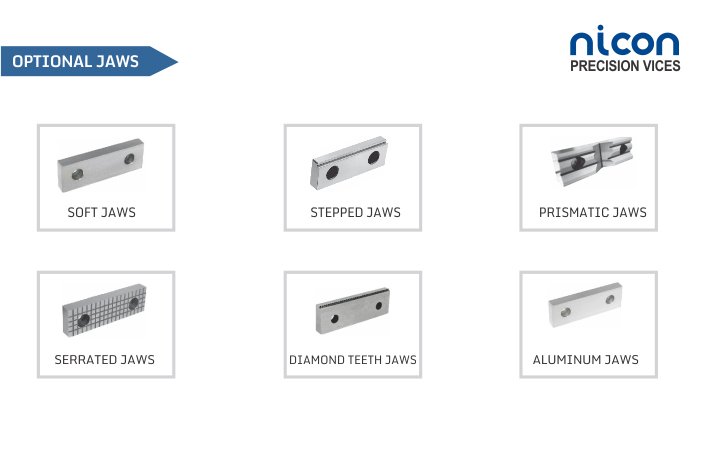

STANDARD ACCESSORIES

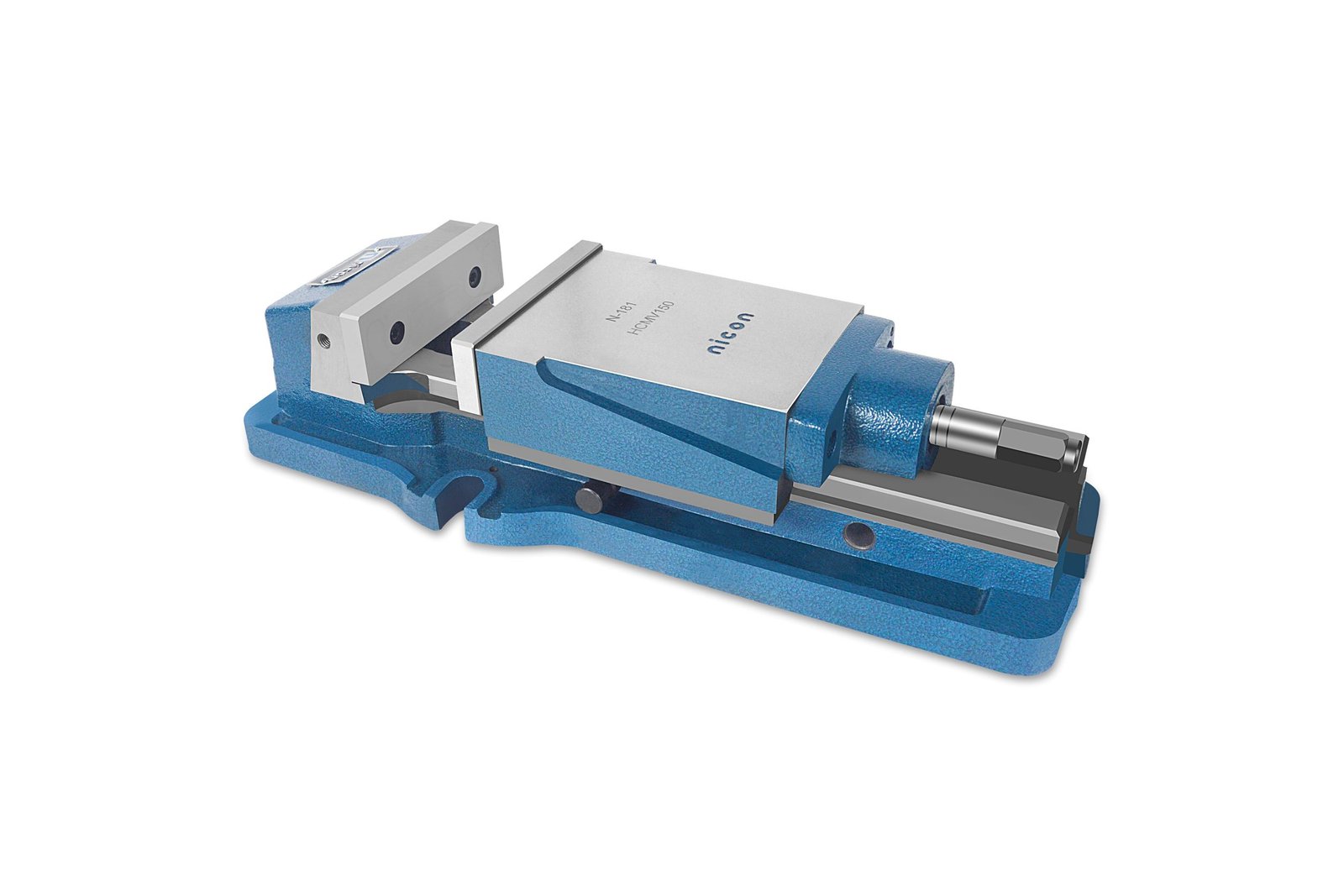

Category: Hydraulic Machine Vices

Hydra-Booster Clamping System: Integrated hydraulic booster system generates up to 4500 kg of maximum clamping pressure with minimal manual operating force.
Deflection-Resistant Ductile Cast Body: Constructed from high-quality ductile cast iron to resist bending, twisting, and deflection under heavy cutting loads.
Hardened & Ground Slideways: Precision ground, hardened guide ways ensure long-lasting durability, smooth jaw travel, and alignment repeatability.
Concealed Spindle Design: Fully enclosed spindle mechanism protects internal threads from chips, grinding dust, and coolant contamination.
High Precision Tolerances: Guarantees strict squareness accuracy within 0.02 / 100 mm for demanding machine shop tasks.
Swivel Base & Warranty Protection: Available with an optional 360° graduated swivel base; the hydra-booster mechanism is backed by a limited 1-year warranty.
Quick & Secure Locking: Engineered for rapid workpiece clamping, reliable locking, and easy manual operation.
