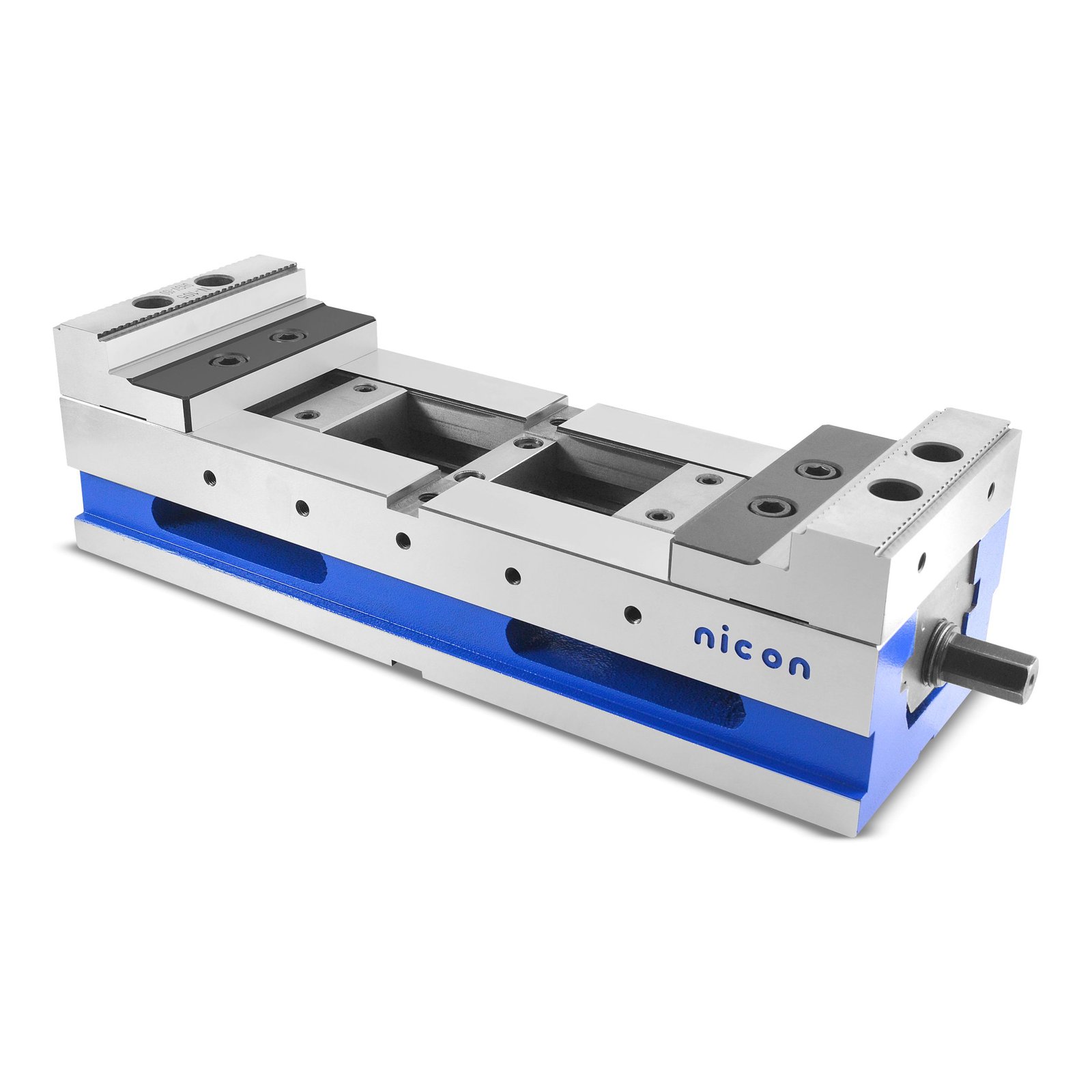

Self-Centring Precision Mechanism: Enables fast, accurate, and repeatable workpiece positioning for mass production and repetitive machining cycles.
High-Grade FCD 60 Ductile Iron Body: Constructed with a high-rigidity FCD 60 ductile iron body featuring precision-ground top and bottom surfaces for reliable alignment and vibration absorption.
Case-Hardened High-Alloy Jaws: Clamping jaws are manufactured from high-strength, high-alloy steel case-hardened to HRC 60 ±2 for maximum performance and wear resistance.
Precision Tolerances: Strict parallelism and squareness are maintained within 0.02 mm for accurate, repeatable cuts.
Hammer-Free Smooth Operation: High clamping pressure is achieved effortlessly through smooth handle rotation, eliminating handle hammering for safer and more efficient use.
Effortless Table Alignment: Fitted with tenons, tenon slots, and interchangeable jaw plates for fast and accurate truing on the machine table.

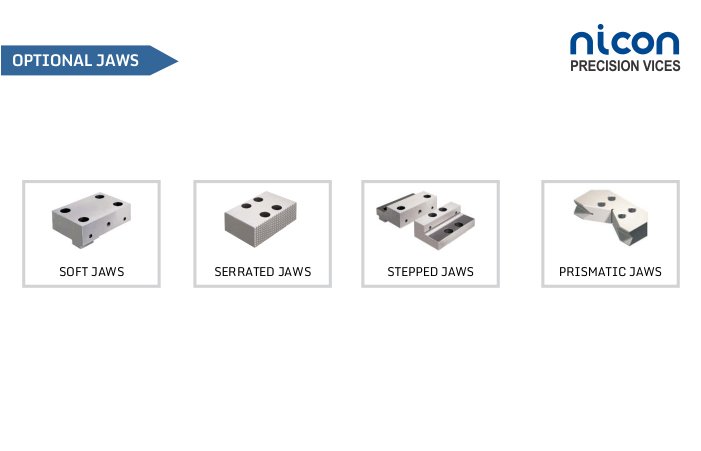

Dual Workpiece Clamping: Clamps two workpieces simultaneously with the addition of an optional intermediate jaw, significantly increasing machine productivity.
STANDARD ACCESSORIES
4 Side Clamps.
1 Box Wrench.
2 Positioning Key Nuts, 1 work stopper
