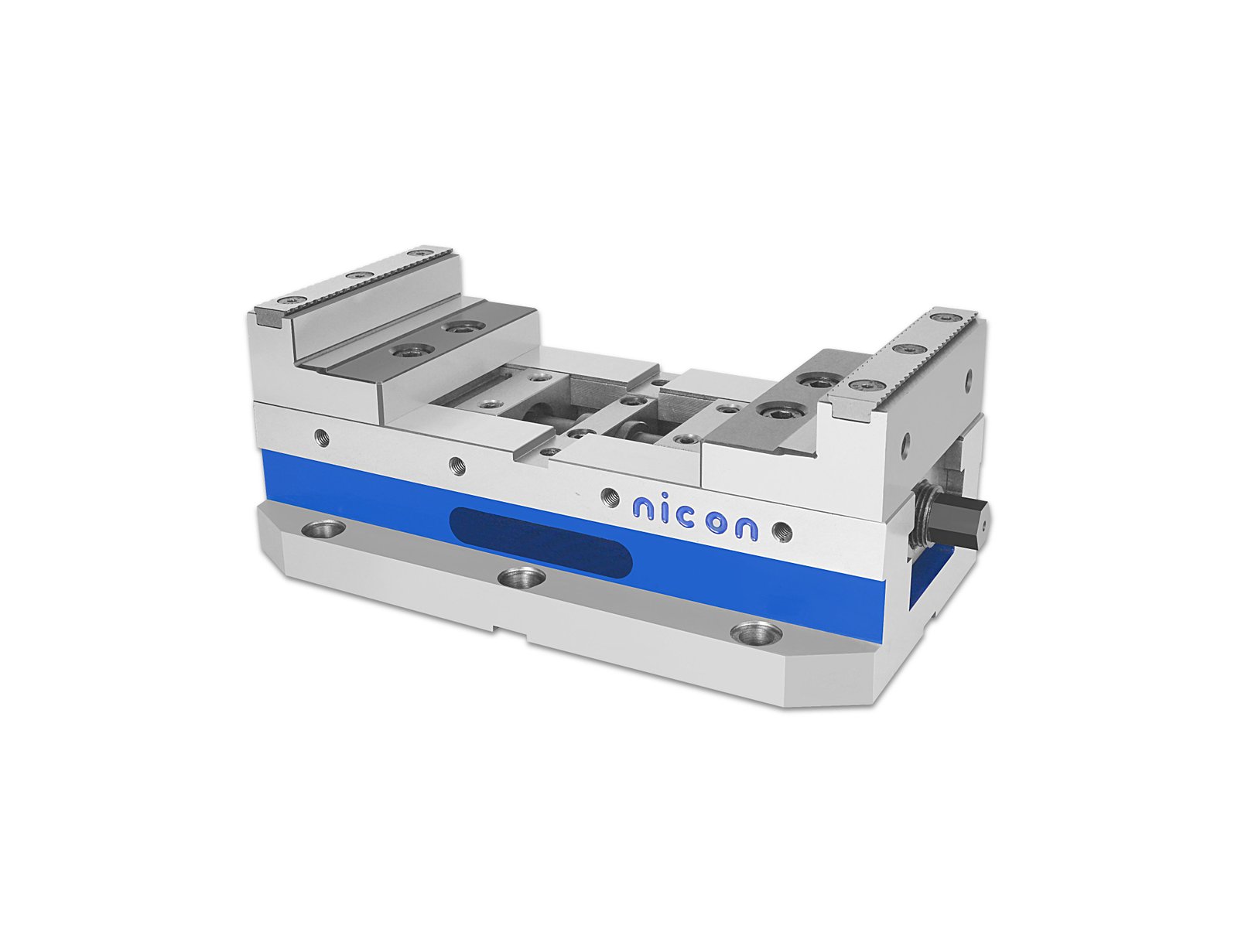

COMPACT SELF CENTRING HIGH GRIP MACHINE VICE

Synchronized Dual-Jaw Motion: Both clamping jaws move simultaneously toward a fixed center point, delivering automatic workpiece centering for fast, repeatable job setups on 3, 4, and 5-axis machines.
Reversible & Convertible Jaw Options: Accommodates a wide range of part sizes by simply reversing or changing jaw plates, enabling quick conversion between narrow and wide-opening clamping modes (up to 240 mm).
High-Grade Modular Interchangeability: All optional jaw plates are 100% interchangeable across matching vice series with perfect alignment guaranteed.
Modular Interchangeability: All optional jaw plates are 100% interchangeable across matching vice series with perfect alignment guaranteed.
Ductile Iron Body: Features a high-rigidity cast body ground on top and bottom surfaces for maximum flatness, alignment, and vibration damping.
3000 kg Clamping Force: Generates up to 3000 kg of holding force through effortless handle rotation, completely eliminating handle hammering.
Matched Bed Height: Standardized bed height consistency across orders ensures seamless ganged setups on long machine tables.
Hardened Jaws: Clamping jaws are made from wear-resistant high-alloy quality steel case-hardened to HRC 60 ± 2 for zero wear and long service life.
Effortless Table Truing: Supplied with tenons and tenon slots for quick, accurate truing on machine table T-slots.
Dual Workpiece Clamping: Holds two workpieces simultaneously with the addition of an optional intermediate jaw for increased production throughput.
Modular Interchangeability: All optional jaw plates are 100% interchangeable across matching vice series with perfect alignment guaranteed.

STANDARD ACCESSORIES

1 BOX Wrench.
2 Positioning Key Nuts, 1 work stopper

Category: Hi Grip Machine Vices
